Classifying Stellar Multiplicity
Classification of star system multiplicity using features extracted from simulated evoluationary data. Implemented in Python with Scikit-learn. Course project for CSE382M Fundational Technics in Machine Learning & Data Science.
Star Formation and Stellar Multiplicity

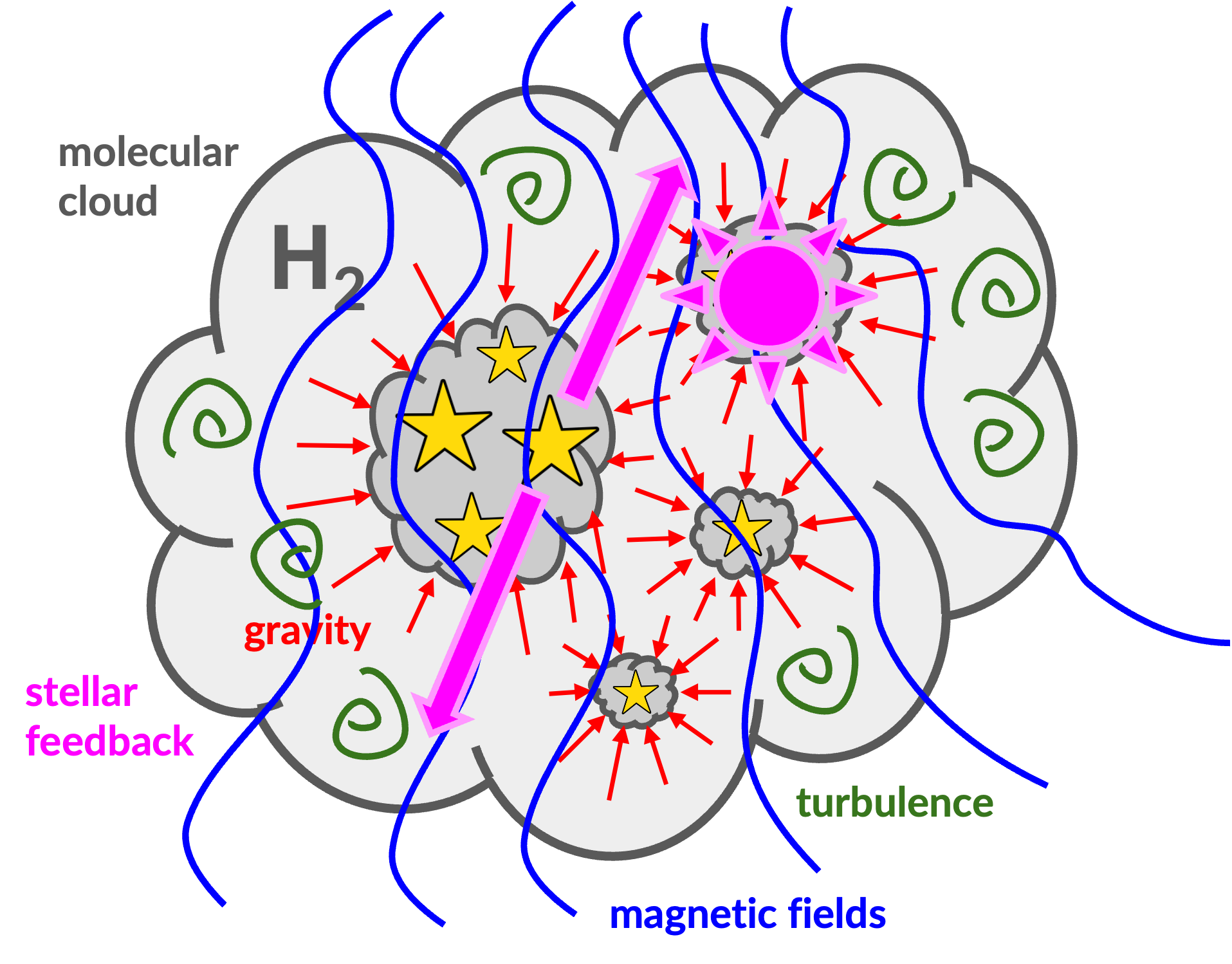

Stars form when overdense regions of molecular (hydrogen gas) clouds contract due to gravity and reach temperatures capable of sustaining hydrogen fusion. Turbulence, magnetic fields, and stellar feedback complicate the dynamics of star formation. Star formation is a highly nonlinear process with a large dynamic range.

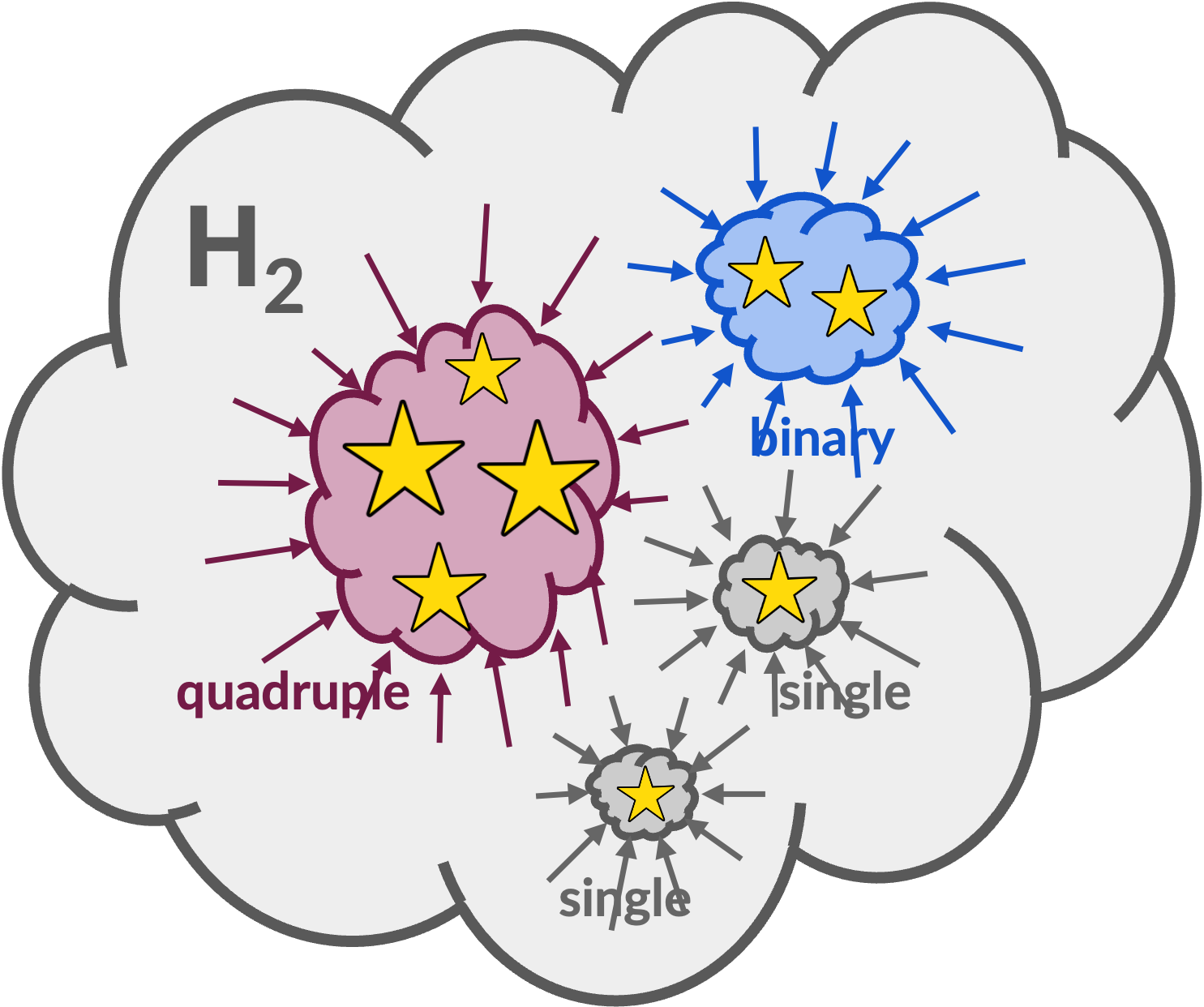

In the end, the concentration of gas will be dense enough to form start. In reality, most start from in gravitationally-bound systems composed of multiple starts. The number of stars that are bounded is referred as multiplicity
The formation process can be modeled by composing a multiphysic process with fluid dynamics in magnetic fields+gravity+radiative transfer+chemical evolution+etc
The formation process can be modeled with coupled partial differential equations and solved numerically. However, finding the final stage of star formation through numerical solver is computationally expensive since the entire evolution of cluster is need to be computed.
In this project, we used machine classification methods to predict the stellar multiplicity from various physical properties of gas cluster of numerical simulation data.
Date Preparation and Preprocessing
Feature extraction
The simulation data we used contains evolutionary process of $N_\mathrm{star}=212$ stars, each with 14 different gas properties. We constructed the data vector $\mathbf{x}$ representing each start system by selected fixed number of points in time with equal separation as the feature. The following figure shows the feature extraction from the evolutionary of various gas properties
The labels are create for each star according to their multiplicity. We set up two different prediction task:
- Binary classification where labeling as just ‘single’ vs. ‘multiple’
- Full classification on all multiplicity with labeling from 1 though 4
Dataset preparation
The quick examine on the data destitution shows strong skewness in the data. The power transform and standardization are performed on data to remove the skewness.
The dataset is then splited into training and testing set with 7:3 ratio.
Cluster properties in high dimension

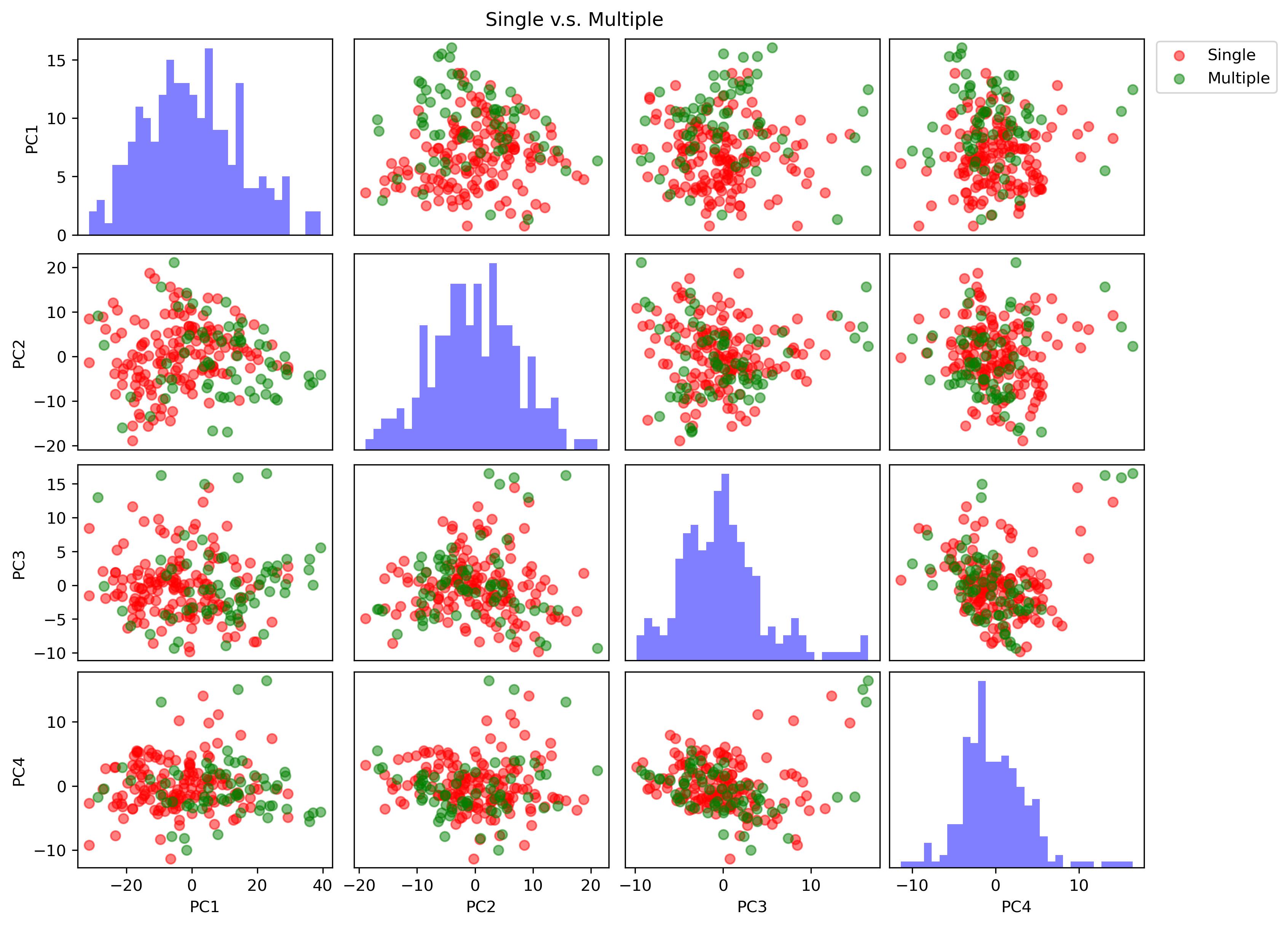

We visualized the cluster properties of the high dimension data using its first 4 principle components
Noticed that no strong linear seperability presented from the plot, meaning an nonlinear methods will be prefered
Kernelized-SVM Classification
The SVM classification framwork is shown as below
To encouperate nonlinearity, we selected radial basis function kernel
\[K(\mathbf{x},\mathbf{x}^\prime)=\exp{(-\gamma\|\mathbf{x}-\mathbf{x}^\prime\|^2)}\]with soft margin
\[L=\frac{1}{2}\|\mathbf{w}\|^2+C\sum_i\xi_i +\sum_i\lambda_i(y_i(\mathbf{w}\cdot\mathbf{x}+b)-1+\xi_i)\]Result

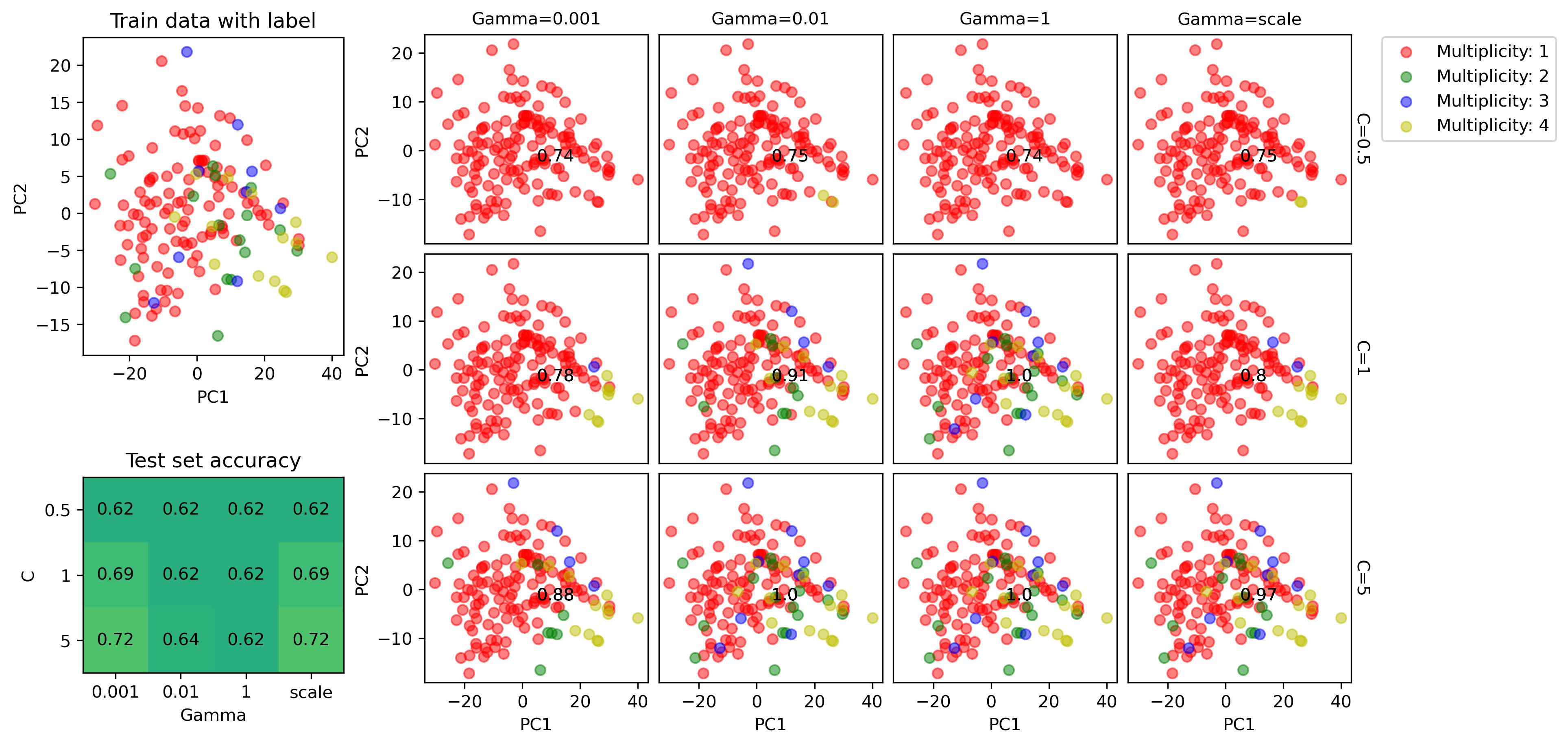

The following figures shows the classification result using 30 time point on both binary and full multiplicity.
The test set prediction accuracy reaches 75% and 72% for binary and multiclass classification.
We tune the hyperparameter $C$ and $\gamma$ usiang cross validation and randomized search. For different sampled point number, we obtained the test set accuracy for binary classification
| $N_{\mathrm{sample}}$ | 1 | 5 | 10 | 20 | 30 | 50 |
|---|---|---|---|---|---|---|
| Best $C$ | 4.0 | 6.0 | 6.5 | 1.8 | 5.0 | 9.5 |
| Best $\gamma$ | scale | 0.003 | 0.005 | 0.001 | 0.001 | 0.001 |
| Accuracy | 70% | 69% | 77% | 69% | 73% | 75% |
and for multiclass case
| $N_{\mathrm{sample}}$ | 1 | 5 | 10 | 20 | 30 | 50 |
|---|---|---|---|---|---|---|
| Best $C$ | 9.7 | 8.6 | 4.9 | 4.3 | 3.4 | 2.0 |
| Best $\gamma$ | scale | 0.05 | 0.005 | 0.004 | 0.003 | 0.002 |
| Accuracy | 64% | 63% | 73% | 70% | 69% | 72% |
Acknowledgement
We thank Nina Filippova on collaborating this project.
